Mac mini Technical Specifications


Model 1
Model 2
Model 3
Finish

Silver

Price

Chip

Apple M2 chip

  • 8-core CPU with 4 performance cores and 4 efficiency cores
  • 10-core GPU
  • 16-core Neural Engine
  • 100GB/s memory bandwidth

Media engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine

Not available

Apple M2 chip

  • 8-core CPU with 4 performance cores and 4 efficiency cores
  • 10-core GPU
  • 16-core Neural Engine
  • 100GB/s memory bandwidth

Media engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine

Not available

Apple M2 Pro chip

  • 10-core CPU with 6 performance cores and 4 efficiency cores
  • 16-core GPU
  • 16-core Neural Engine
  • 200GB/s memory bandwidth

Media engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine

Configurable to:

  • M2 Pro with 12-core CPU and 19-core GPU
Memory

8GB

  • 8GB unified memory

Configurable to:

  • 16GB or 24GB

8GB

  • 8GB unified memory

Configurable to:

  • 16GB or 24GB

16GB

  • 16GB unified memory

Configurable to:

  • 32GB
Storage1

256GB

  • 256GB SSD

Configurable to:

  • 512GB, 1TB or 2TB

512GB

  • 512GB SSD

Configurable to:

  • 1TB or 2TB

512GB

  • 512GB SSD

Configurable to:

  • 1TB, 2TB, 4TB or 8TB
Display Support

Simultaneously supports up to two displays:

  • One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMI

Thunderbolt 4 digital video output

  • Support for native DisplayPort output over USB‑C

HDMI display video output

  • Support for one display with up to 4K resolution at 60Hz

Simultaneously supports up to three displays:

  • Up to three displays: two displays with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 60Hz over HDMI
  • Up to two displays: one display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 144Hz over HDMI
  • One display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over HDMI

Thunderbolt 4 digital video output

  • Support for native DisplayPort output over USB‑C

HDMI display video output

  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
Video Playback
  • Supported formats include HEVC, H.264 and ProRes
  • HDR with Dolby Vision, HDR10 and HLG
Audio Playback
  • Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
Audio
  • Built-in speaker
  • 3.5mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multi-channel audio output
Connections and Expansion

Two Thunderbolt 4 ports (M2) or four Thunderbolt 4 ports (M2 Pro) with support for:

  • DisplayPort
  • Thunderbolt 4 (up to 40Gb/s)
  • USB 4 (up to 40Gb/s)
  • USB 3.1 Gen 2 (up to 10Gb/s)
  • Thunderbolt 2, HDMI, DVI and VGA supported using adapters (sold separately)
  • Two USB‑A ports (up to 5Gb/s)
  • HDMI port
  • Gigabit Ethernet port (configurable to 10Gb Ethernet)
  • 3.5mm headphone jack

M2 model with two Thunderbolt 4 ports

Ethernet
Thunderbolt 4
HDMI
USB‑A
3.5mm headphone jack

M2 Pro model with four Thunderbolt 4 ports

Ethernet
Thunderbolt 4
HDMI
USB‑A
3.5mm headphone jack
Communications

Wi‑Fi

  • Wi‑Fi 6E (802.11ax)2

Bluetooth

  • Bluetooth 5.3

Ethernet

  • 10/100/1000BASE-T Gigabit Ethernet (RJ‑45 connector)
  • Configurable to 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector)
Size and

Weight

Height: 3.58 cm (1.41 inches)

Width: 19.70 cm (7.75 inches)

Depth: 19.70 cm (7.75 inches)

Weight (M2): 1.18 kg (2.6 pounds)3

Weight (M2 Pro): 1.28 kg (2.8 pounds)3

Width: 19.70 cm (7.75 inches) Depth: 19.70 cm (7.75 inches)
Height: 3.58 cm (1.41 inches)
Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power (M2): 150W

Maximum continuous power (M2 Pro): 185W

Operating temperature: 10° to 35° C (50° to 95° F)

Storage temperature: –40° to 47° C (–40° to 116° F)

Relative humidity: 5% to 90% non-condensing

Operating altitude: tested up to 5,000 metres (16,400 feet)

Typical acoustical performance: sound pressure level (operator position): 5 dBA at idle4

Limited Warranty and Service

In Ireland, consumers are entitled to a free-of-charge repair or replacement, by the seller, of goods that do not conform with the contract of sale. Under Irish law, consumers have up to six years from the date of delivery to exercise their rights; however, various factors may impact your eligibility to receive these remedies. For more details, click here.

Your Mac mini also comes with 90 days of complimentary technical support and a one-year limited warranty from Apple. To learn more about how Apple will service your Mac mini, click here.

Purchase AppleCare+ to get up to three years of expert technical support and hardware coverage, including unlimited repairs for accidental damage from handling, each subject to an excess fee. For more information, click here.

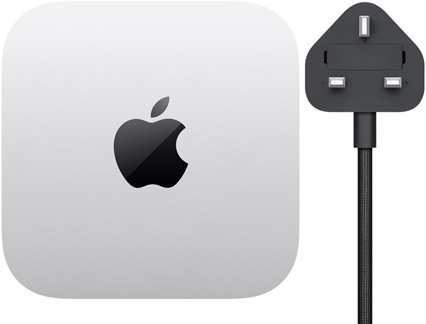

In the Box
  • Mac mini
  • Power lead
Operating System

macOS

macOS is the most advanced desktop operating system in the world. And with macOS Sonoma, work and play on your Mac are even more powerful — with new ways to elevate your video presentations, boost your gaming performance and personalise your device.

Learn more

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.

Features include:

  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Closed Captions
  • Text to Speech
Built-in Apps5
App Store
Books
Calendar
Contacts
FaceTime
Find My
Freeform
GarageBand
Home
iMovie
Keynote
Mail
Maps
Messages
Music
Notes
Numbers
Pages
Photo Booth
Photos
Podcasts
Preview
QuickTime Player
Reminders
Safari
Shortcuts
Siri
Stocks
Time Machine
TV
Voice Memos
Configure to Order

Configure your Mac mini with these options at apple.com:

Model 1

  • Not available
  • 16GB or 24GB unified memory
  • 512GB, 1TB or 2TB SSD
  • 10Gb Ethernet

Model 2

  • Not available
  • 16GB or 24GB unified memory
  • 1TB or 2TB SSD
  • 10Gb Ethernet

Model 3

  • M2 Pro with 12‑core CPU, 19‑core GPU and 16‑core Neural Engine
  • 32GB unified memory
  • 1TB, 2TB, 4TB or 8TB SSD
  • 10Gb Ethernet

Mac mini and the Environment

Mac mini is designed with the following features to reduce its environmental impact:6

See the Mac mini Product Environmental Report

Made with better materials

Over 40% recycled content in the entire product,7 including:

  • 100% recycled aluminium in the enclosure of Mac mini with M2 and M2 Pro, and in the thermal module of Mac mini with M2 Pro.
  • 100% recycled rare earth elements in all magnets
  • 100% recycled tin in the solder of multiple printed circuit boards
  • 100% recycled gold in the plating of multiple printed circuit boards
  • 35% or more recycled plastic in multiple components

Energy efficient

  • ENERGY STAR® certified8

Smarter chemistry9

  • Mercury-, BFR-, PVC- and beryllium-free

Green manufacturing

  • Apple’s Zero Waste Programme helps suppliers eliminate waste sent to landfill
  • All final assembly supplier sites are transitioning to 100% renewable energy for Apple production

Responsible packaging

  • 100% of virgin wood fibre comes from responsibly managed forests
  • 96% fibre-based packaging and no outer plastic wrapping10

Apple Trade In

Trade in your eligible device for credit towards your next purchase, or get an Apple Gift Card you can use anytime.11 If your device isn’t eligible for credit, we’ll recycle it for free.

See how it works

Apple and the Environment

We’re committed to making our products without taking from the earth, and to become carbon neutral across our entire business, including products, by 2030.

See Apple’s commitment
