Mac mini Technical Specifications
Silver
Apple M2 chip
- 8-core CPU with 4 performance cores and 4 efficiency cores
- 10-core GPU
- 16‑core Neural Engine
- 100GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
Not available
Apple M2 chip
- 8-core CPU with 4 performance cores and 4 efficiency cores
- 10-core GPU
- 16‑core Neural Engine
- 100GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
Not available
Apple M2 Pro chip
- 10-core CPU with 6 performance cores and 4 efficiency cores
- 16-core GPU
- 16‑core Neural Engine
- 200GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
Configurable to:
- M2 Pro with 12-core CPU and 19-core GPU
8GB
- 8GB unified memory
Configurable to:
- 16GB or 24GB
8GB
- 8GB unified memory
Configurable to:
- 16GB or 24GB
16GB
- 16GB unified memory
Configurable to:
- 32GB
256GB
- 256GB SSD
Configurable to:
- 512GB, 1TB or 2TB
512GB
- 512GB SSD
Configurable to:
- 1TB or 2TB
512GB
- 512GB SSD
Configurable to:
- 1TB, 2TB, 4TB or 8TB
Simultaneously supports up to two displays:
- One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMI
Thunderbolt 4 digital video output
- Support for native DisplayPort output over USB‑C
HDMI display video output
- Support for one display with up to 4K resolution at 60Hz
Simultaneously supports up to three displays:
- Up to three displays: Two displays with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 60Hz over HDMI
- Up to two displays: One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 144Hz over HDMI
- One display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over HDMI
Thunderbolt 4 digital video output
- Support for native DisplayPort output over USB‑C
HDMI display video output
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Supported formats include HEVC, H.264 and ProRes
- HDR with Dolby Vision, HDR10 and HLG
- Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
- Built-in speaker
- 3.5mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multi-channel audio output
Two Thunderbolt 4 ports (M2) or four Thunderbolt 4 ports (M2 Pro) with support for:
- DisplayPort
- Thunderbolt 4 (up to 40 Gbps)
- USB 4 (up to 40 Gbps)
- USB 3.1 Gen 2 (up to 10 Gbps)
- Thunderbolt 2, HDMI, DVI and VGA supported using adapters (sold separately)
- Two USB-A ports (up to 5 Gbps)
- HDMI port
- Gigabit Ethernet port (configurable to 10Gb Ethernet)
- 3.5mm headphone jack
M2 model with two Thunderbolt 4 ports
M2 Pro model with four Thunderbolt 4 ports
Wi-Fi
- Wi-Fi 6E (802.11ax)2
Bluetooth
- Bluetooth 5.3
Ethernet
- 10/100/1000BASE-T Gigabit Ethernet (RJ‑45 connector)
- Configurable to 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector)
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power (M2): 150W
Maximum continuous power (M2 Pro): 185W
Operating temperature: 10° to 35° C
Storage temperature: –40° to 47° C
Relative humidity: 5% to 90% non-condensing
Operating altitude: tested up to 5,000 metres
Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle4
Your Mac mini comes with 90 days of complimentary technical support and a one-year limited warranty. Purchase AppleCare+ for Mac to extend your coverage to three years from your AppleCare+ purchase date and add unlimited repairs for accidental damage from handling, each subject to a service fee of RM 469 for screen damage or external enclosure damage, or RM 1,429 for other repairable accidental damage.

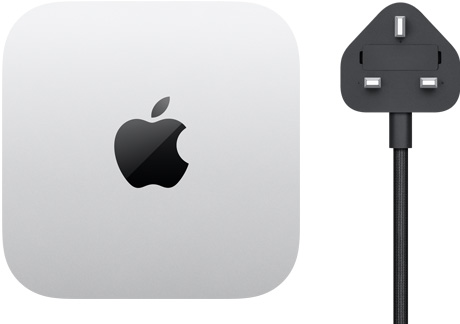

- Mac mini
- Power cable
macOS
macOS is the most advanced desktop operating system in the world. macOS Sequoia helps you be productive and creative in new ways — with window tiling, major updates to Safari, iPhone Mirroring and support for Apple Intelligence.5
Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.
Features include:
- Zoom
- Increase Contrast
- Reduce Motion
- Dictation
- Switch Control
Configure your Mac mini with these options at apple.com:
Model 1
- Not available
- 16GB or 24GB unified memory
- 512GB, 1TB or 2TB SSD
- 10Gb Ethernet
Model 2
- Not available
- 16GB or 24GB unified memory
- 1TB or 2TB SSD
- 10Gb Ethernet
Model 3
- M2 Pro with 12‑core CPU, 19‑core GPU and 16‑core Neural Engine
- 32GB unified memory
- 1TB, 2TB, 4TB or 8TB SSD
- 10Gb Ethernet
Mac mini and the Environment
Mac mini is designed with the following features to reduce its environmental impact:7
See the Mac mini Product Environmental Report
Made with better materials
Over 40 per cent recycled content in the entire product,8 including:
- 100 per cent recycled aluminium in the enclosure of Mac mini with M2 and M2 Pro, and in the thermal module of Mac mini with M2 Pro
- 100 per cent recycled rare earth elements in all magnets
- 100 per cent recycled tin in the solder of multiple printed circuit boards
- 100 per cent recycled gold in the plating of multiple printed circuit boards
- 35 per cent or more recycled plastic in multiple components
Energy efficient
- ENERGY STAR® certified9
Smarter chemistry10
- Mercury-, BFR-, PVC- and beryllium‑free
Green manufacturing
- Apple’s Zero Waste Programme helps suppliers eliminate waste sent to landfill
- All final assembly supplier sites are transitioning to 100 per cent renewable energy for Apple production
Responsible packaging
- 100 per cent of virgin wood fibre comes from responsibly managed forests
- 96 per cent fibre-based packaging and no outer plastic wrap11
Apple Trade In
Trade in your eligible device for credit towards your next purchase.12 If your device isn’t eligible for credit, we’ll recycle it for free.
Apple and the Environment
We’re committed to making our products without taking from the Earth, and to becoming carbon‑neutral across our entire business, including products, by 2030.
