Mac Studio - Technical Specifications


Mac Studio, Model1
Mac Studio, Model2
Finish
Front view of Mac Studio

Silver

Price
Chip

Apple M2 Max chip

  • 12-core CPU with 8 performance cores and 4 efficiency cores
  • 30-core GPU
  • 16-core Neural Engine
  • 400GB/s memory bandwidth

Media engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode engines

Configurable to:

M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine

Apple M2 Ultra chip

  • 24-core CPU with 16 performance cores and 8 efficiency cores
  • 60-core GPU
  • 32-core Neural Engine
  • 800GB/s memory bandwidth

Media engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines

Configurable to:

M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

Memory

32GB

32GB unified memory

Configurable to:

64GB (M2 Max) or 96GB (M2 Max with 38‑core GPU)

64GB

64GB unified memory

Configurable to:

128GB or 192GB

Storage1

512GB

512GB SSD

Configurable to:

1TB, 2TB, 4TB, or 8TB

1TB

1TB SSD

Configurable to:

2TB, 4TB, or 8TB

Display Support

M2 Max

Simultaneous support for up to five displays:

  • Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI
  • Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

M2 Ultra

Simultaneous support for up to eight displays:

  • Eight displays with up to 4K resolution at 60Hz
  • Six displays with up to 6K resolution at 60Hz
  • Three displays with up to 8K resolution at 60Hz

Thunderbolt 4 digital video output

  • Support for native DisplayPort output over USB‑C

HDMI display video output

  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR, and multichannel audio
Audio
  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output
Connections and Expansion
Back view of Mac Studio showcasing the back ports

Thunderbolt 4

10Gb Ethernet

USB-A

HDMI

3.5 mm headphone jack

Four Thunderbolt 4 ports with support for:

  • Thunderbolt 4 (up to 40Gb/s)
  • DisplayPort
  • USB 4 (up to 40Gb/s)
  • USB 3.1 Gen 2 (up to 10Gb/s)
  • Two USB-A ports (up to 5Gb/s)
  • HDMI port
  • 10Gb Ethernet
  • 3.5 mm headphone jack

On front (M2 Max):

  • Two USB-C ports (up to 10Gb/s)
  • SDXC card slot (UHS-II)

On front (M2 Ultra):

  • Two Thunderbolt 4 ports (up to 40Gb/s)
  • SDXC card slot (UHS-II)
Communications

Wi-Fi

  • Wi-Fi 6E (802.11ax)2

Bluetooth

  • Bluetooth 5.3

Ethernet

  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Size and Weight
  • Height: 3.7 inches (9.5 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight (M2 Max): 5.9 pounds (2.7 kg)3
  • Weight (M2 Ultra): 7.9 pounds (3.6 kg)3

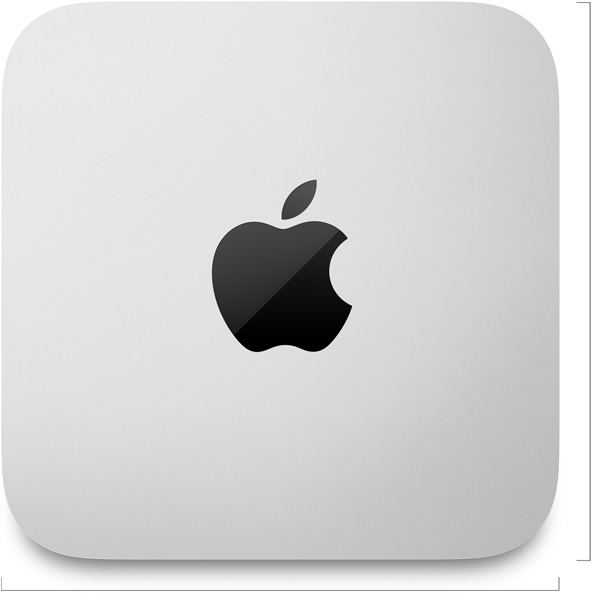

Top view of Mac Studio
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)

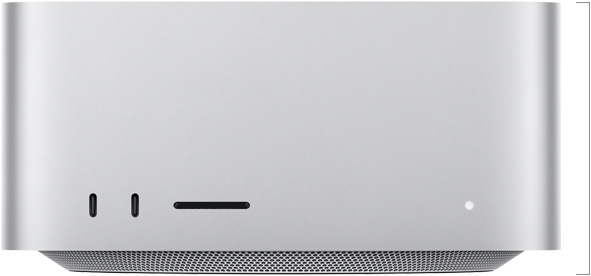

Front view of Mac Studio
Height: 3.7 inches (9.5 cm)
Electrical and Operating Requirements
  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 370W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Operating altitude: tested up to 16,400 feet (5000 meters)
Limited Warranty and Service

Your Mac Studio comes with 90 days of complimentary technical support and a one‑year limited warranty. Purchase AppleCare+ for Mac to extend your coverage from your AppleCare+ purchase date and add unlimited repairs for accidental damage from handling, each subject to a service fee of $99 for screen damage or external enclosure damage, or $299 for other repairable accidental damage, plus applicable tax.

In the Box
  • Mac Studio
  • Power cord
Mac Studio alongside its power cord
Operating System

macOS

macOS is the most advanced desktop operating system in the world. macOS Sequoia helps you be productive and creative in new ways — with window tiling, major updates to Safari, iPhone Mirroring, and support for Apple Intelligence.4

Learn more

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.

Learn more

Features include:

  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Live Captions
Built-in Apps5
App Store
Books
Calendar
Contacts
FaceTime
Find My
Freeform
GarageBand
Home
iMovie
Keynote
Mail
Maps
Messages
Music
News
Notes
Numbers
Pages
Photo Booth
Photos
Podcasts
Preview
QuickTime Player
Reminders
Safari
Shortcuts
Siri
Stocks
Time Machine
TV
Voice Memos
Weather
Configure to Order
  • Configure your Mac Studio with these options at apple.com:
  • M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine
  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine
  • 64GB unified memory (M2 Max)
  • 96GB unified memory (M2 Max with 38-core GPU)
  • 128GB unified memory (M2 Ultra)
  • 192GB unified memory (M2 Ultra)
  • 1TB, 2TB, 4TB, or 8TB SSD

Mac Studio and the Environment

Mac Studio is designed with the following features to reduce its environmental impact:6

See the Mac Studio Product Environmental Report (PDF)

Made with better materials

  • 34% recycled content in the entire product,7 including:
    • 100% recycled aluminum in the enclosure
    • 100% recycled rare earth elements in all magnets
    • 100% recycled gold in the plating of multiple printed circuit boards
    • 100% recycled tin in the solder of multiple printed circuit boards
    • 100% recycled copper and zinc in the prongs of the power cord plug and AC inlet
    • 25% or more recycled plastic in multiple components

Energy efficient

ENERGY STAR® certified8

Smarter chemistry9

Mercury-, BFR-, PVC-, and beryllium‑free

Green manufacturing

  • Over 30% of manufacturing electricity sourced from supplier clean energy projects10
  • No established final assembly supplier sites generate any waste sent to landfill11

Responsible packaging

  • 100% of virgin wood fiber comes from responsibly managed forests12
  • 99% fiber-based due to our work to eliminate plastic in packaging13

Progress toward our 2030 goal

Reduced emissions for Mac Studio by 34% against our baseline14
