Mac Studio - Technical Specifications
Silver
Apple M4 Max chip
- 14-core CPU with 10 performance cores and four efficiency cores
- 32-core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 410GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
M4 Max with 16‑core CPU, 40‑core GPU and 16‑core Neural Engine (546GB/s memory bandwidth)
Apple M3 Ultra chip
- 28-core CPU with 20 performance cores and eight efficiency cores
- 60-core GPU
- Hardware-accelerated ray tracing
- 32-core Neural Engine
- 819GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Two video decode engines
- Four video encode engines
- Four ProRes encode and decode engines
- AV1 decode
Configurable to:
M3 Ultra with 32‑core CPU, 80‑core GPU and 32‑core Neural Engine (819GB/s memory bandwidth)
Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no-one else can access your data — not even Apple.
36GB
36GB unified memory
Configurable to:
48GB, 64GB or 128GB (M4 Max with 16-core CPU and 40‑core GPU)
96GB
96GB unified memory
Configurable to:
256GB or 512GB (M3 Ultra with 32-core CPU and 80‑core GPU)
512GB
512GB SSD
Configurable to:
1TB, 2TB, 4TB or 8TB
1TB
1TB SSD
Configurable to:
2TB, 4TB, 8TB or 16TB
M4 Max
Simultaneous support for up to five displays:
- Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
- Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
M3 Ultra
Simultaneous support for up to eight displays:
- Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
- Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz
Thunderbolt 5 digital video output
- Support for native DisplayPort 2.1 output over USB‑C
HDMI display video output
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Support for variable refresh rate (VRR), HDR and multichannel audio
- Built-in speaker
- 3.5-mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Thunderbolt 5
10Gb
Ethernet
USB-A
HDMI
2.1
3.5-mm headphone jack
Four Thunderbolt 5 (USB‑C) ports with support for:
- Thunderbolt 5 (up to 120 Gbps)
- USB 4 (up to 120 Gbps)
- USB 3 (up to 10 Gbps)
- DisplayPort 2.1
- Two USB 3 (USB‑A) ports (up to 5 Gbps)
- HDMI 2.1 port
- 10Gb Ethernet
- 3.5-mm headphone jack

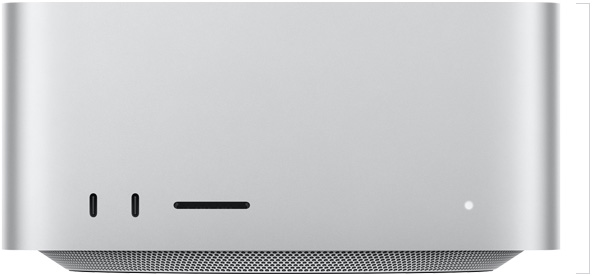

On front (M4 Max):
- Two USB‑C ports (up to 10 Gbps)
- SDXC card slot (UHS-II)
On front (M3 Ultra):
- Two Thunderbolt 5 ports (up to 120 Gbps)
- SDXC card slot (UHS-II)
Wi-Fi
- Wi-Fi 6E (802.11ax)3
Bluetooth®
- Bluetooth 5.3
Ethernet
- 10Gb Ethernet (NbaseT Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector)
Products that you purchase in New Zealand are covered by New Zealand consumer law. For more details, click here.
Your Mac Studio also comes with 90 days of complimentary technical support and a one-year limited warranty from Apple. To learn more about how Apple will service your Mac Studio, click here.
Purchase AppleCare+ for Mac to get expert technical support and coverage for unlimited repairs for accidental damage from handling, each subject to a service fee of NZ$169 for external enclosure damage, or NZ$499 for other accidental damage. Coverage begins on your AppleCare+ purchase date. For more information, click here.
- Mac Studio
- Power cord
Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.
Learn moreFeatures include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Live Captions
Configure your Mac Studio with these options at apple.com/nz:
- M4 Max with 16‑core CPU, 40‑core GPU and 16‑core Neural Engine
- 48GB, 64GB or 128GB unified memory (M4 Max with 16-core CPU and 40‑core GPU)
- 1TB, 2TB, 4TB or 8TB SSD
- M3 Ultra with 32‑core CPU, 80‑core GPU and 32‑core Neural Engine
- 256GB unified memory
- 512GB unified memory (M3 Ultra with 32-core CPU and 80‑core GPU)
- 2TB, 4TB, 8TB or 16TB SSD
Mac Studio and the Environment
Mac Studio is designed to reduce environmental impact:7
See the Mac Studio Product Environmental Report (PDF)Progress towards Apple 2030
- More than 30 per cent recycled content8
- Over 35 per cent of manufacturing electricity sourced from low-carbon electricity9
- Over 30 per cent emissions reduction against business-as-usual scenario as modelled by Apple10
Materials
- 100 per cent recycled aluminium in the enclosure and thermal module chassis
- 100 per cent recycled copper in multiple printed circuit boards
- 100 per cent recycled gold in the plating of all Apple-designed printed circuit boards and multiple connectors
- 100 per cent recycled rare earth elements in all magnets
- 100 per cent recycled tin in the solder of the multiple printed circuit boards
- 100 per cent recycled copper and zinc in the prongs of the power cord plug and AC inlet
- At least 25 per cent recycled plastic in three components
- 100 per cent fibre-based packaging11
- 59 per cent recycled content in fibre-based packaging
